Terminal User Interface (TUI)

Optimization happens fast. Sometimes, you need to see it unfold without leaving your terminal.

The ArqonHPO TUI is a zero-latency, high-visibility monitor for your optimization runs. Whether you're debugging a local script or monitoring a job over SSH, the TUI gives you an instant pulse on your solver's progress using a modern, responsive interface.

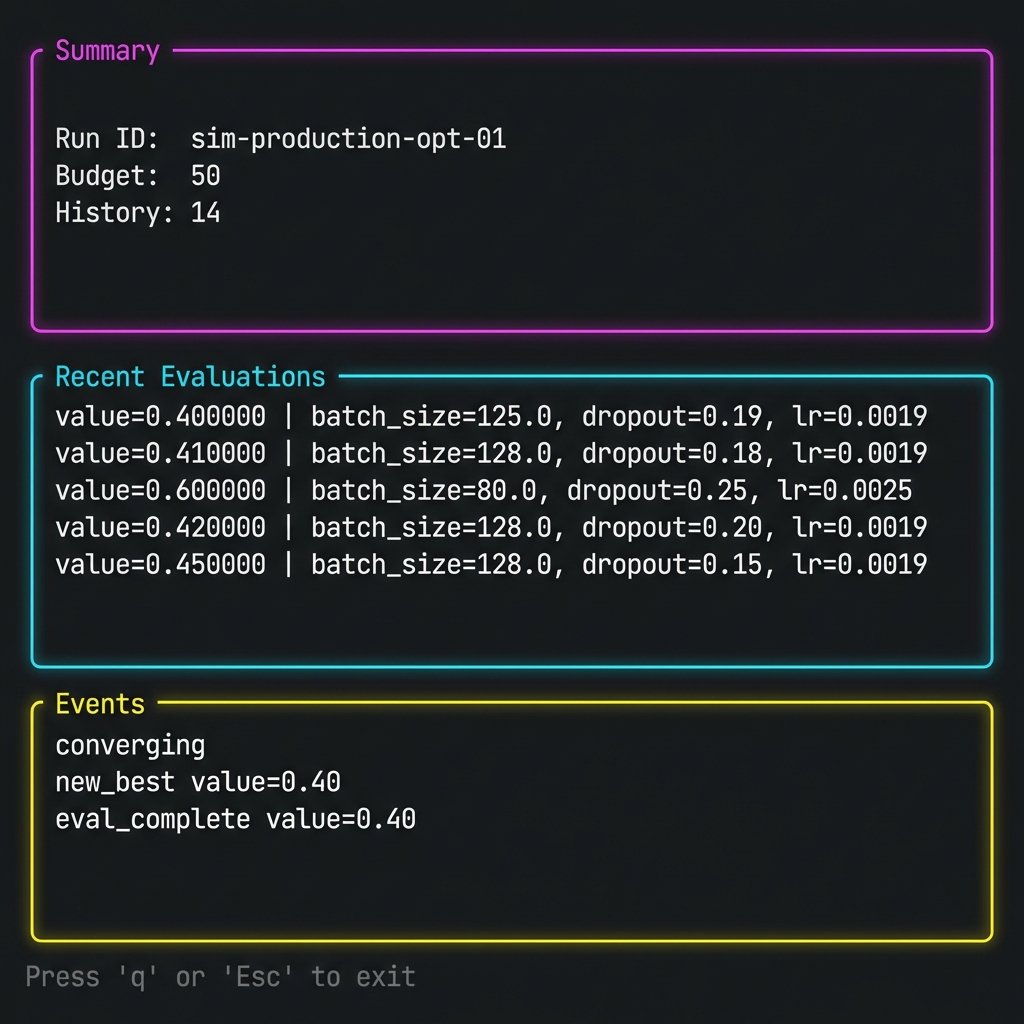

ArqonHPO TUI Interface

Why Use the TUI?

  • Zero Overhead: runs directly in your terminal; no browser required.
  • Instant Feedback: Watch the solver explore, converge, and react in real-time.
  • Remote Ready: Perfect for monitoring headless servers or SSH sessions where web ports aren't forwarded.

The Interface Explained

The TUI is divided into three logical panels, designed to give you the complete picture at a glance:

1. Summary Phase (Top)

The Pulse. This panel shows the high-level health of your run.

  • Run ID: The unique identifier for this optimization session (useful for tracking logs).
  • Budget: How many evaluations are left before the solver stops.
  • History: The total number of points evaluated so far.

2. Recent Evaluations (Middle)

The Action. This is where the work happens. It lists the most recent parameter combinations the solver has tried, along with their results.

  • Value: The objective function result (lower is better for minimization).
  • Params: The hyperparameters chosen for that evaluation (e.g., learning_rate, batch_size).
  • Color Coding:
  • Green values indicate a new best finding.
  • Standard white/gray values indicate exploration or non-optimal points.

3. Events Stream (Bottom)

The Narrative. While evaluations show what happened, events tell you why.

  • Convergence Warnings: When the solver detects it's stuck in a local minima.
  • Phase Shifts: When the algorithm switches strategies (e.g., from "Probe" to "Refine").
  • Errors: Immediate feedback on script failures or guardrail violations.

Starting the TUI

To launch the TUI, point it at your solver's state file:

arqonhpo tui --state state.json

If you also want to see the live event stream (highly recommended for debugging), include the events file:

arqonhpo tui --state state.json --events events.jsonl
Flag Description
--state Required. Path to the JSON state file updated by arqonhpo ask/tell.
--events Optional. Path to the JSONL events log for rich narrative feedback.
--refresh-ms Update frequency (default: 500ms). Increase for slow SSH connections.

Controls & Keybindings

Navigate the interface without touching your mouse.

Key Action Context
q or Esc Quit Exit the TUI immediately.
r Force Refresh Manually reload the state and events files.
p Pause Freeze auto-refresh to inspect a specific value.
↑ / ↓ Scroll Scroll through history or logs when paused.

configuration & Performance

Refresh Rate

By default, the TUI polls for changes every 500 milliseconds.

  • Local Development: Lower it to 100ms for a smoother, "matrix-like" feel.
arqonhpo tui --state state.json --refresh-ms 100
  • High-Latency SSH: Raise it to 2000ms (2 seconds) to reduce bandwidth usage.
    arqonhpo tui --state state.json --refresh-ms 2000

Data Sources

The TUI is stateless. It simply visualizes the files on disk. This means:

  1. You can stop/start the TUI without affecting the running optimization.
  2. You can run multiple TUI instances watching the same file (e.g., one on a big screen, one on your laptop).

Monitoring Multiple Experiments

Since the TUI is bound to a single state file, it displays one run per window.

To monitor multiple concurrent experiments:

  1. Ensure each experiment writes to a unique state file (e.g., run_A.json, run_B.json).
  2. Open separate terminal tabs or use a multiplexer like tmux.
  3. Launch a dedicated TUI instance for each run:
# Terminal 1
arqonhpo tui --state run_A.json

# Terminal 2
arqonhpo tui --state run_B.json

Next Steps

  • CLI Reference: Learn how to generate the state files the TUI consumes.
  • Dashboard: Prefer a browser? Check out the web-based dashboard for charts and graphs.
